Charpy Impact

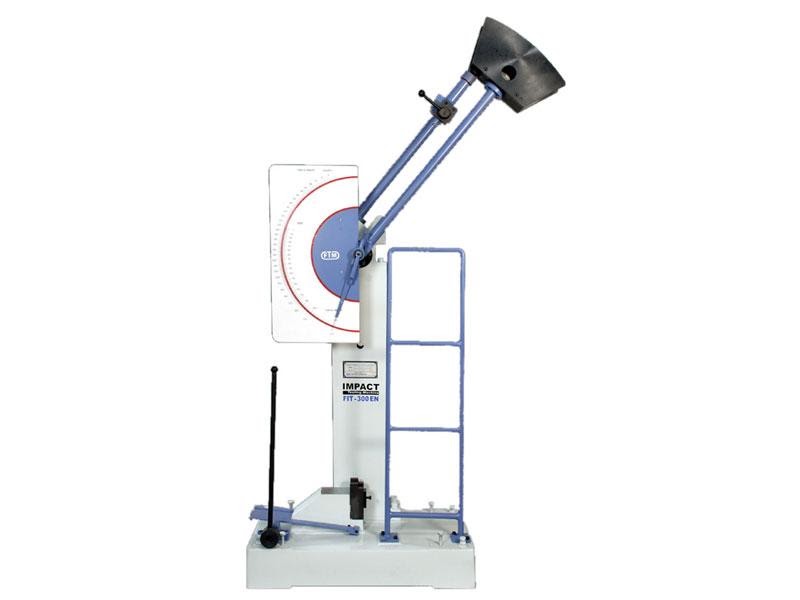

Analogue Impact Testing Machine

Model :

FIT-300EN (ISO 148)

Features :

  • Capacity : Charpy : 300 Joule, Izod: 170 Joule.
  • This is low cost Impact testing machine & it is specially designed for engineering colleges.
  • This Machine conforms to IS 3766-1977, IS 1598-1977, IS 1757-1988,IS 1499-1977 and BS 131 Part I, II, III, IV. standard.
  • This is simple & maintenance free machine.
  • New modified Brake drum unit is provided to stop the pendulum swing instantly after test.
  • Safety guard is provided for operator safety.

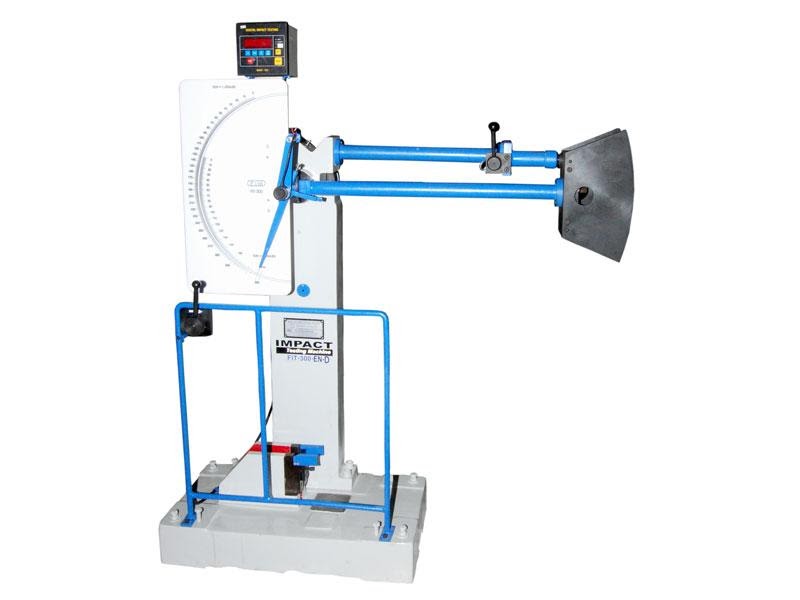

Digital Impact Testing Machine

Model :

FIT-300D (ISO 148)

Features :

  • Capacity: Charpy: 300 Joule, Izod: 170 Joule
  • It conforms to BS EN ISO 148,IS 3766-1977, IS 1598-1977, IS 1757-1988, IS 1499-1977 (for Charpy) & BS 131 Part!, II, III, IV (for lzod) current standard.
  • Indirect verification with the help of ERM samples can be carried out.
  • Direct inciication of impact energy absorbeci by the specimen on digital display unit. (Analogue dial is optional.)
  • New modified Brake drum unit is provided to stop the pendulum swing instantly after test.
  • Safety guard is provided for operator safety.

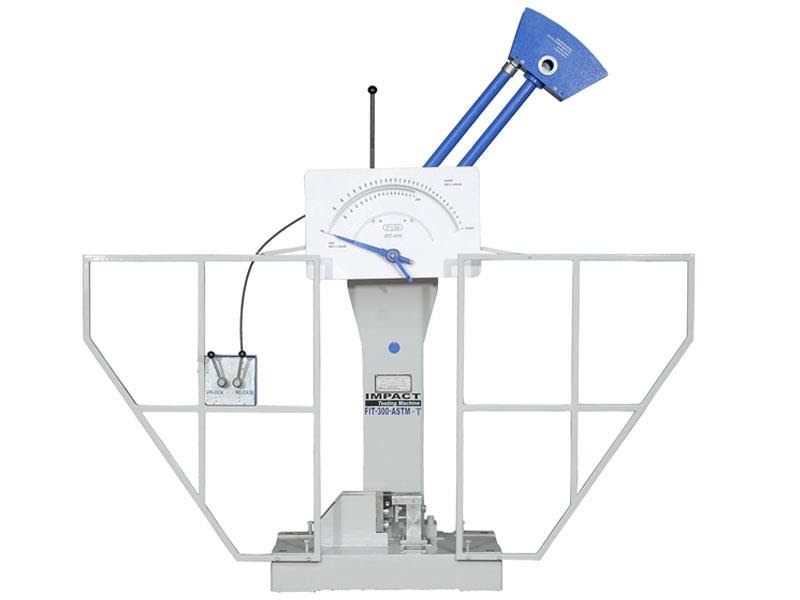

Digital ASTM Charpy Impact Testing Machine

Model :

FIT-300/400-ASTM, FIT-300/400-ASTM-D

Features :

  • Capacity: Charpy: 300 / 400 Joule.
  • Suitable only for Charpy tests on various material.
  • Machine conforms to ASTM-E-23- current standard.
  • Optional R2mm striker can be provided as per BS EN IS0148 standard.
  • Pendulum release lever with safety lock for operator safety.
  • New modified Brake drum unit is provided to stop the pendulum swing instantly after test.
  • Large safety guards are provided either side of machine.
  • Approval of Impact machine with Charpy test samples from NIST. USA. (optional ERM samples) can be arranged.
  • Digital display unit or Analogue large dial for indication of absorbed energy.
  • Total Maintenance free machine.
  • Optional Motorized with higher capacity impact machine is also available.

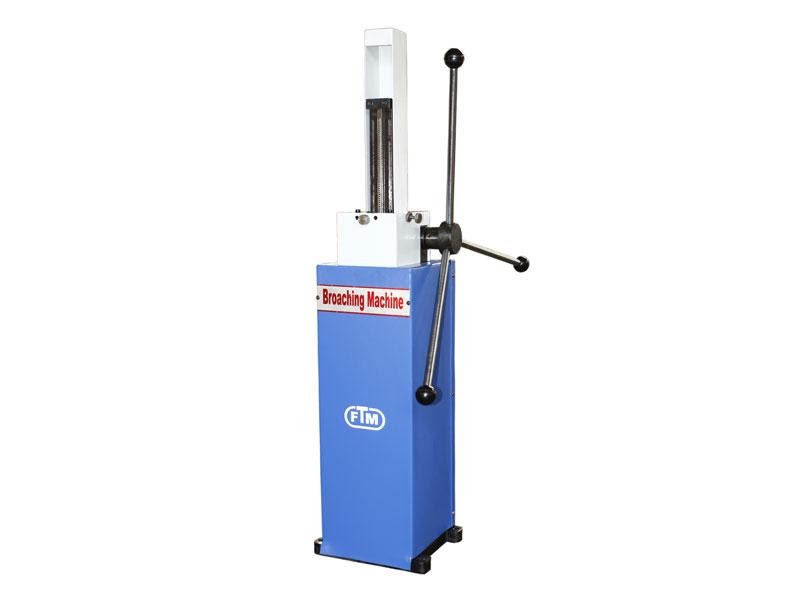

Broaching Machine

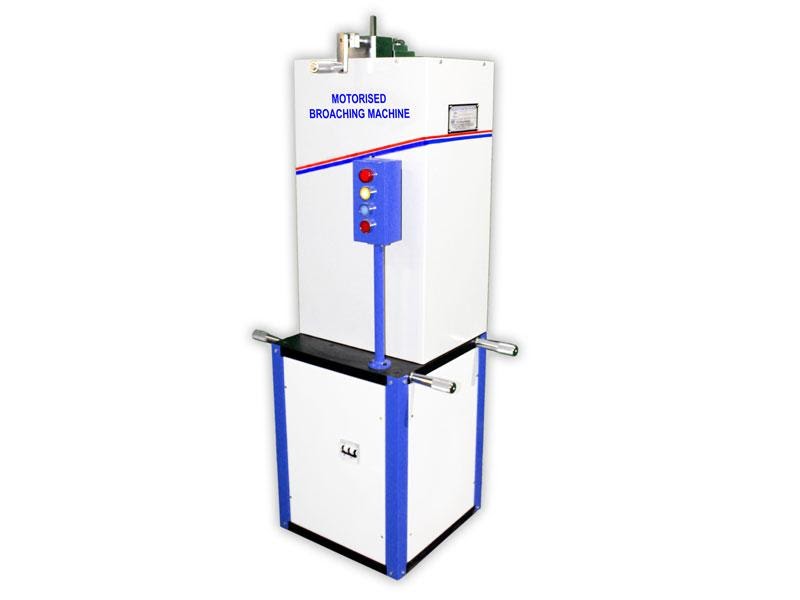

  • FTM make Motorised broaching machine is suitable for making accurate 'V' and V' Notch in the 10 x 10 mm Impact specimen.
  • The Broaching machine is fitted with 2 mm 'V' notch broach made from HSS material. Simply by pressing one button one can make 'V' or 'U' notch on Impact specimen.
